Laser trackers
The laser tracker is the most modern and the best solution on the metrological market for measuring large dimensions. The measurement range of the device with metrological accuracy is up to 160 meters. As an exclusive and authorized Polish distributor of API Metrology, we offer Laser Trackers from the RADIAN family of this manufacturer.

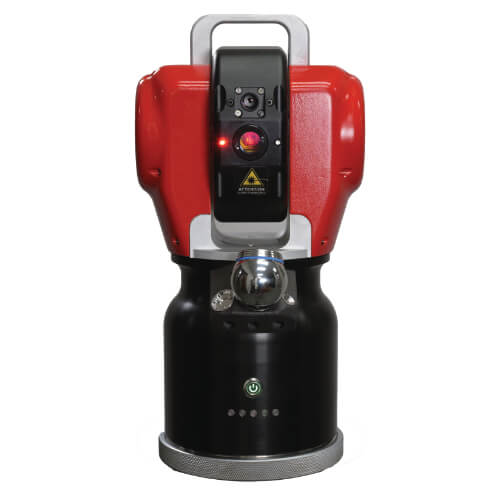

Laser Tracker RADIAN API Metrology
API Metrology’s RADIAN Pro, Plus and Core Laser Tracker models offer unbeatable quality and the best solutions available on the market for large-volume measurements.
This unique and state-of-the-art portable system operates with metrology accuracy, providing the ideal solution for measuring large components, measuring in limited spaces or with large temperature fluctuations. The system will also prove useful for calibrating machines and production lines.
The offer is complemented by a wide range of handheld touch probes and laser scanning probes such as the vProbe and iScan3D.
API Metrology's vProbe probe
The vProbe is a lightweight, hand-held, modern generation wireless contact probe. API Metrology’s vProbe wireless technology works perfectly with the manufacturer’s Radian Plus and Radian Pro laser trackers.
The vProbe probe allows measurements without repositioning the tracker or fixture for hidden points, deep holes and hard-to-reach measurements.
API Metrology's iScan scanner
The iSCAN3D Laser Line Scanner is a compact and highly accurate metrology handheld laser scanner, integrated with the manufacturer’s Radian Plus and Radian Pro Laser Tracker. The crossed blue laser lines of API Metrology’s iScan3D are capable of scanning in any direction. Two stylus attachment locations for contact measurements provide measurement flexibility and precision results.
The iScan3D can scan a wide range of surface textures, including areas of high gloss and contrast. It also provides exceptional accuracy for contact measurements of hidden points.
|
System accuracy |
|||
|
2 -7 Meters |
7-15 meters |
Above 15 Meters |
|
|
Spatial length (2σ) |
± 50µm |
± 80µm |
± (20µm + 4µm/m) |
|
Sphere radius (2σ) |
± 50µm |
± 75µm |
± (30µm + 4µm/m) |
|
Area (2σ) |
± 60µm |
± 70µm |
± (80µm + 2µm/m) |
|
Attributes |
|||
|
Angle acceptance |
±45°(Pitch and Yaw) 360° Roll |
||
|
Sampling frequency |
100Hz |
||
|
Max. scanning speed |
200,000 pkt/s |
||
|
Laser line color |
Blue |
||
|
Min. point spacing |
70µm |
||
|
Offset distance |
170mm ±40mm |
||
|
Depth of field |
±40mm |
||
|
Field of view |
110mm x 100mm |
||
|
Size and weight |
high 265mm x W 110mm x L 110mm / 1.03kg |
||
|
working range |
Up to 50m (using 50m cable) |
||
|
Automatic lock |
|||
|
iVision field of view |
30° (diagonal) |
||
|
Operating range |
2m – 40m |
||
|
Environment |
|||
|
working temperature |
-10°C – 45°C |
||
|
Relative humidity |
10% – 95% (non-condensing) |
||
|
Power |
|||
|
Supply voltage |
110V/230V ±10% |
||
|
Energy consumption |
100W |
||
